Flamco LogoPack

Flamco Group

The Flamco Group is part of the Dutch technology concern Aalberts Industries N. V.

Flamco is an internationally active group concentrating on technical products in the field of heating, cooling and solar systems. Together with their sister companies Meibes and Simplex they cover a broad spectrum of innovative building technology systems.

The synergy effects of this strong coalition make Flamco a competent partner n total solutions are desired – complete from the source to the emitter.

Transfer Stations

The Logotherm home stations are efficient and compact home stations for various central applications in the field of district and local heating and freshwater production. Freshwater stations and decentralized applications use home stations for demand-oriented hot water, distribution of heat, and the transfer and distribution of cooling energy. Depending on the application and the requirement, these products are available with different control techniques from hydraulic, thermostatic or electronic control (with many other control and communication functions. .

Interface stations

The Logotherm interface station is a compact, ready-to-fit unit which assumes all functions for independent heating and hot water supply. Depending on the respective system and application, the hot water output is configured to ensure that multiple draw-off points can be supplied at the same time. The domestic water can be heated on demand, so there is no longer any need to store the domestic hot water in a tank. Only three lines (3-line system) are required: the heating flow line, heating return line and the cold water line (the hot water line and circulation are no longer required).

Advantages for you

Quick and easy installation.

Extremely convenient and hygienically safe supply of domestic hot water (according to DVGW Code of Practice W 551).

Custom control of heating for the living space to increase efficiency of your mains supply.

With weather-controlled heating circuit controller, depending on the respective station.

Select stations also suitable for problematic domestic water.

Reduced maintenance costs..

LogoPack

The LogoPack units are compact, ready-to-fit decentralised interface stations in which the hot water preparation and heating of the living space are controlled proportionally according to volume, designed for riser line installation in restricted spaces (duct installation)..   .



Technical Specifications

Hydraulically controlled.

Max. heating/sanitary pressure: PN 10/PN 10.

Max. permissible heating/sanitary temperatures: 110 °C/110 °C.

Heating capacity (at 20 K): 10 kW.

LS-E 750 - 1000

Flamco Group

The Flamco Group is part of the Dutch technology concern Aalberts Industries N. V.

Flamco is an internationally active group concentrating on technical products in the field of heating, cooling and solar systems. Together with their sister companies Meibes and Simplex they cover a broad spectrum of innovative building technology systems.

The synergy effects of this strong coalition make Flamco a competent partner n total solutions are desired – complete from the source to the emitter.

Buffering and Water Heating

Flamco has a very wide range of high-quality direct and indirectly fired hot water cylinders and buffer vessels for drinking water and heating installations, available as enamelled, stainless steel or carbon steel. Made from quality materials and insulated according to strict environmental guidelines to provide a high heat output, they are very energy efficient. A revolutionary form of heat storage is available in the form of our FlexTherm Eco, it is twice as fast and three times as compact with an extremely low standing loss (A+ rating). The range includes tap water supply systems and thermal buffer tanks for heating, cooling or combi boiler systems. .

Storage Vessels - Potable Water Systems

LS-E stainless steel storage vessels for potable hot water

LS-E 750 - 1000

Storage vessel for potable hot water, for use in systems in which heat can be exchanged by external heat exchangers.

Efficient: Minimum heat loss and very fast heating up.

Requires little maintenance and no anode.

Light weight.

Excellent stratification of the water in the vessel.

High resistance to chloride (up to 250 ppm)..   .



Technical Specifications

Maximum working pressure: 10 bar.

Maximum working temperature: 95 °C.

Stainless steel type: 1.4521.

Including an inspection flange DN 110 at the side.

Insulation:

Standard colour: silver.

Including graphite polystyrene (GPS) insulation with a polypropylene outer shell (fire category B1).

Flamco Mild Steel Dosing Pots

Flamco Group

The Flamco Group is part of the Dutch technology concern Aalberts Industries N. V.

Flamco is an internationally active group concentrating on technical products in the field of heating, cooling and solar systems. Together with their sister companies Meibes and Simplex they cover a broad spectrum of innovative building technology systems.

The synergy effects of this strong coalition make Flamco a competent partner n total solutions are desired – complete from the source to the emitter

Air / Dirt Separation and Dosing Solutions

Installations in which the water has been properly degassed, and are free from all kinds of dirt particles, use less energy, produce less noise and have a longer service life. Flamco products provide these sustainable solutions. In our products we use established principles combined with new technologies, such as with the XStream series of air and dirt separators, optimised to separate air and dirt particles from the system water in installations. In addition we offer solutions to easily introduce additives and cleaners to the system.

Dosing pots

Mild Steel Dosing Pots

Most heating and chilled water systems require chemical dosing and the dosing pot provides a controlled method of achieving this.

Dosing pots are of a mild steel welded construction, supplied fully assembled for easy installation. The unit comes complete with tundish, vessel, air vent, inlet, outlet and drain valves.

Supplied fully assembled.

Simple operations.

Increases energy efficiency.

Extends the life of the system.

Internally uncoated to guarantee chemical compatibility with standard installations..

Technical Specifications

Minimum/Maximum working temperature: 5 °C / 95 °C.

Maximum working pressure: 16 bar.

Certifications and standards applied:

PED 2014/68/EU Article 4 Paragraph 3 Sound Engineering Practice.

Welding BS EN281-1.

Fitting to BS21/ISO 7-1.

Material of construction:

Cylinder: EN/ISO S235JRG2.

Dished ends: EN/ISO S235JRG2.

Fittings: Galvanised steel.

T-piece: Galvanised steel.

Tundish: EN/ISO S235JRG2.

Valves: Chrome plated brass.

Exterior finishing: Epoxy powder coating – Red (RAL 3002)..

Flamco Prescor B

Flamco Group

The Flamco Group is part of the Dutch technology concern Aalberts Industries N. V.

Flamco is an internationally active group concentrating on technical products in the field of heating, cooling and solar systems. Together with their sister companies Meibes and Simplex they cover a broad spectrum of innovative building technology systems.

The synergy effects of this strong coalition make Flamco a competent partner n total solutions are desired – complete from the source to the emitter

Safety Valves and Pressure Gauges

Flamco has a complete range of products to protect sealed cooling, heating and solar installations. For example, the different versions of our Prescor safety valves are used internationally to prevent overpressure situations in sealed systems. The broad Pressure Safety portfolio for potable installations protects drinking water systems and potable installations. For example, our Prescor BFP removes the risk of pollution or contamination of a drinking water network, temperature control and inlet combination valves for drinking water systems protect against exceeding the maximum pressure..

Safety Valves

Prescor Safety Valves Water Heaters

For protecting water heaters and potable water systems.

When the system pressure reaches the set pressure, the Prescor B boiler valve begins to vent, whereby the pressure stops rising. If, due to specific circumstances, the pressure rapidly rises over the set pressure, the Prescor B boiler valve will open fully, creating a large blow off capacity. This is a permanent, reliable safeguard against overpressure. Venting can be prevented by installing a suitably sized Airfix expansion vessel for sanitary systems.

The seating of Prescor boiler valves is designed so that it not only makes a perfect seal but can also achieve a large blow-off capacity.

The hardness of the rubber is adapted according to the set pressure of the safety valve. Due to this combination of a specifically designed seating and special rubber it is possible to achieve optimum safety.

Wide range so that the correct valve can be selected appropriate to the application.

Can be used in combination with any storage boiler system.

Because of the ''pop'' effect these valves have a high blow-off capacity.

Solid brass housing.

Valve seat with silicon free rubber seal.

Anti-ageing steel spring maintains the set pressure accurately.

With silicon free diaphragm that prevents moisture and dirt from getting into the moving parts.

Construction and choice of materials are your guarantee of accuracy and safety.

In accordance with PED 2014/68/EU and EN 12516-3..

Prescor B

For protecting water heaters and potable water systems.

When the system pressure reaches the set pressure, the Prescor B boiler valve begins to vent, whereby the pressure stops rising. If, due to specific circumstances, the pressure rapidly rises over the set pressure, the Prescor B boiler valve will open fully, creating a large blow off capacity. This is a permanent, reliable safeguard against overpressure. Venting can be prevented by installing a suitably sized Airfix expansion vessel for sanitary systems.

The seating of Prescor boiler valves is designed so that it not only makes a perfect seal but can also achieve a large blow-off capacity.

The hardness of the rubber is adapted according to the set pressure of the safety valve. Due to this combination of a specifically designed seating and special rubber it is possible to achieve optimum safety.

Wide range so that the correct valve can be selected appropriate to the application.

Can be used in combination with any storage boiler system.

Because of the ''pop'' effect these valves have a high blow-off capacity.

Solid brass housing.

Valve seat with silicon free rubber seal.

Anti-ageing steel spring maintains the set pressure accurately.

With silicon free diaphragm that prevents moisture and dirt from getting into the moving parts.

Construction and choice of materials are your guarantee of accuracy and safety.

Technical Specifications

Minimum/Maximum working temperature: 0 °C / 95 °C.

Peak load: 140 °C.

In accordance with PED 2014/68/EU and EN 12516-3.

Flamco Flexcon 2 - 80

Flamco Group

The Flamco Group is part of the Dutch technology concern Aalberts Industries N. V.

Flamco is an internationally active group concentrating on technical products in the field of heating, cooling and solar systems. Together with their sister companies Meibes and Simplex they cover a broad spectrum of innovative building technology systems.

The synergy effects of this strong coalition make Flamco a competent partner n total solutions are desired – complete from the source to the emitter.

Expansion Systems

Flamco carries a wide range of expansion vessels, equipped with innovative technology. Both the steel shell and the membrane are of top quality and guarantee a long service life. In addition to expansion vessels, Flamco produces an extensive range of automat expansion machines with compressor control (Flexcon M-K series) or with pump control (Flamcomat), all characterized by optimum technical performance and equipped with an easy-to-use display. These automat machines keep the pressure in the installation balanced and constant, regardless of the temperature of the water. Due to their high volume efficiency, they are more space-saving than normal expansion vessels. Flamco also has a wide range of topup equipment as an addition to the automat products or traditional expansion vessels.

Expansion Vessels

Flamco produces a comprehensive range of diaphragm expansion vessels. Both the steel vessel and the diaphragm are of the highest quality. They are compliant with all prevailing European standards and carry the CE mark of conformity. Flamco vessels are available for both potable, chilled and heated water systems in sizes ranging from 2 litres up to 8,000 litres...

Flexcon

For sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.

Flexcon advantages

Flexible diaphragms with rolling action.

The unique clench ring construction clamps the diaphragm between the two vessel halves.

Nitrogen gas filling for longer maintenance of pre-pressure.

The ribbed profile on the diaphragm prevents it from sticking to the inside wall of the vessel and ensures inflow of expansion water at the slightest increase in pressure.

Uncoated water connection thread ensures easy and water tight installation.

Top quality steel.

Finished with a gleaming epoxy-powder coating.

Each vessel is factory tested.

Suitable for addition of glycol-based anti-freeze up to 50%.

Vessels in accordance with EN13831.

Suitable for systems with a maximum system temperature of 120 °C.

Min. / max. temperature diaphragm: -10 / 70 °C.

In accordance with Pressure Equipment Directive 2014/68/EU.

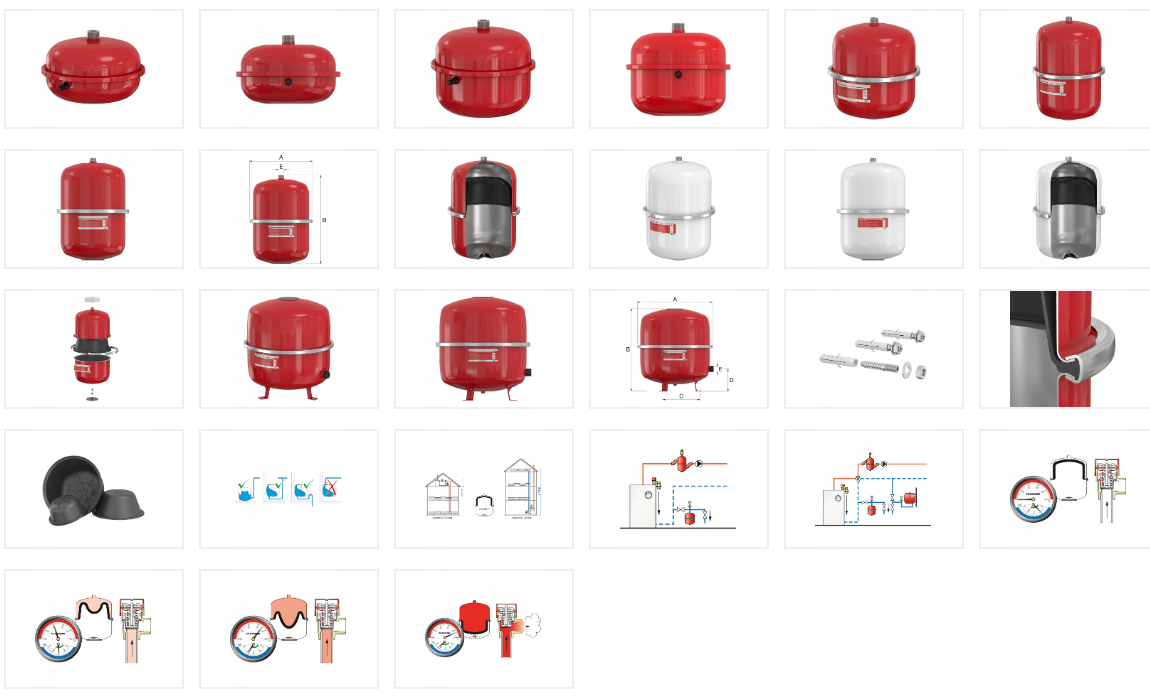

Flexcon 2 - 80

For sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.

Flexible diaphragms with rolling action.

The unique clench ring construction clamps the diaphragm between the two vessel halves.

Nitrogen gas filling for longer maintenance of pre-pressure.

The ribbed profile on the diaphragm prevents it from sticking to the inside wall of the vessel and ensures inflow of expansion water at the slightest increase in pressure.

Uncoated water connection thread ensures easy and water tight installation.

Top quality steel.

Finished with a gleaming epoxy-powder coating.

Each vessel is factory tested

Technical Specifications

Maximum working pressure: 3.0 or 6.0 bar.

Vessels in accordance with EN13831.

Suitable for systems with a maximum system temperature of 120 °C.

Minimum / maximum temperature diaphragm: -10 / 70 °C.

Red (RAL 3002) epoxy powder coating (18 litre also available in white).

Suitable for addition of glycol-based anti-freeze up to 50%.

In accordance with Pressure Equipment Directive 2014/68/EU.

Deep drawn steel vessel halves with zinc plated steel clench ring.

Flexcon 35 - 80: With feet and including mounting kit.
